Ndfeb Magnet Plate
Next > >
Ndfeb Magnet Plate
Product Description

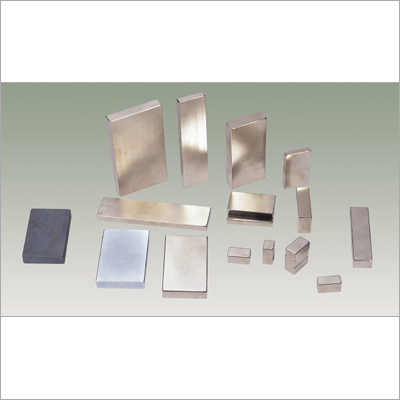

NDFEB Magnet Plate
Our expertise enables us to manufacture, export and supply a broad range of NDFEB Magnet Plate that is made available in various shapes and sizes. This plate is precisely fabricated using different sophisticated manufacturing techniques like injection moulding, extrusion and sintering. Free from self-demagnetization, this magnet plate is metallic in appearance and is extensively used in MRI machines, sensors, magnetic separators, generators and DC motors. Furthermore, this NDFEB Magnet Plate can be availed from us in within given time frame as per the clients' choice at industry leading price.
Special Key Features:
- Abrasion resistance
- High coercive force
- Excellent temperature stability
- High resistance to demagnetization
- Resistance to corrosion and chips
Additonal Features:
- Can be easily molded to varieties of shapes such as arc-segments, gears, thin ring, etc.
- Chips and corrosion resistant
- Developed by the uniform composition of rare-earth NdFeB magnetic powers and embedded with thermoplastic and shaped using an injection molding machine
- Hard in nature
- Hold excellent temperature stability
- Hold good resistance to demagnetization
- Made with high grade magnetic material with Cost-Index(2) = 7~10
- Non brittle and light in weight
- Power-Index(1) = 6~7 of strong magnetic power
| Magnetic Properties | ||||||||
| Magnetics and Physical Properties | MB-4 | MB-6 | MB-8 | MB-8H | MB-10 | MB-10H | MB-12 | MB-12D |
| Residual Induction (mT) Br (KGs) | 350-450 (3.5-4.5) | 500-600 (5.0-6.0) | 600-670 (6.0-6.7) | 560-680 (5.6-6.8) | 650-700 (6.5-7.0) | 660-700 (6.6-7.0) | 700-800 (7.0-8.0) | 700-800 (7.0-8.0) |
| Coercive Force (KA/m) Hcb (KOe) | 240-280 (3.0-3.5) | 320-360 (4.0-4.5) | 360-400 (4.5-5.5) | 400-464 (5.0-5.8) | 400-440 (5.0-5.5) | 400-480 (5.5-6.0) | 416-480 (5.2-6.0) | 448-480 (5.6-6.0) |
| Intrinsic Coercive Force (KA/m) Hcj (KOe) | 640-800 (8.0-10.0) | 640-800 (8.0-10.0) | 640-880 (8.0-11.0) | 960-1360 (12.0-14.0) | 640-800 (8.0-10.0) | 760-840 (9.5-10.5) | 640-880 (8.0-11.0) | 720-960 (9.0-12.0) |
| Maximum Energy Products(KJ/m3) (BH) max (MGOe) | 24-32 (3.0-4.0) | 40-56 (5.0-7.0) | 64-72 (8.0-9.0) | 60-72 (7.5-9.0) | 72-80 (9.0-10.0) | 80-96 (9.0-10.0) | 80-96 (10.0-12.0) | 80-96 (10.0-12.0) |
| Physical Properties | ||||||||
| Magnetics and Physical Properties | MB-4 | MB-6 | MB-8 | MB-8H | MB-10 | MB-10H | MB-12 | MB-12D |
| Average Reversible Temperature Coefficient (%/°C) | -0.1 | -0.1 | -0.1 | -0.13 | -0.1 | -0.1 | -0.1 | -0.07 |
| Curie Temperature (°C) | 400 | 400 | 400 | 305 | 400 | 360 | 360 | 470 |
| Max Operating Temperature (°C) | 150 | 150 | 140 | 120 | 150 | 130 | 130 | 140 |
| Saturation Magnetizing Force (KA/m) sd (KOe) | 1600 | 1600 | 2000 | 2800 | 1600 | 2000 | 1600 | 2000 |
| (KA/m) sd (KOe) | 20 | 20 | 25 | 35 | 20 | 25 | 20 | 25 |
| Density d (g/cm3) | 4.5-5.0 | 5.5-5.8 | 5.8-6.0 | 5.8-6.0 | 5.8-6.2 | 6.0-6.2 | 6.2-6.6 | 6.2-6.6 |
| Hardness HRB | 40-45 | 40-45 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 |
